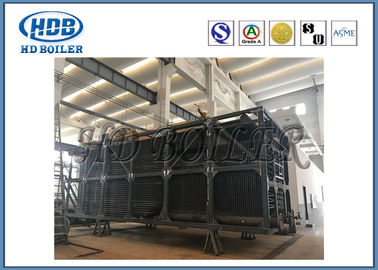

Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators

Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators

    • Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators
    • Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators
    • Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators
    • Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators
  • Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators

    পণ্যের বিবরণ:

    Place of Origin: China
    পরিচিতিমুলক নাম: HD BOILER
    সাক্ষ্যদান: ISO9001,ASME,Grade A,SGS,EN
    Model Number: HRSG Boiler

    প্রদান:

    Minimum Order Quantity: 1 Set
    মূল্য: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: Negotiation
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20 Sets Per Year
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Condition: New Output: Steam
    Pressure: High Pressure Dimension: Customized
    Style: Horizontal Usage: Industrial
    Type: Natural Circulation Port: Shanghai

    Organic heat carrier furnace flue gas waste heat recovery boiler utility model improved structure



    Introduction



    Organic heat carrier boiler in recent 20years,has been in the textile printing and dyeing,chemical,food, leather,wood processing,biological pharmaceutical and other industries widely used,due to the return oil temperature is higher,generally in the 200~250℃,the boiler exhaust smoke temperature is higher , generally can reach 300~350℃,the heat from flue gas if directly into the atmosphere,will cause a lot of heat loss in vain.In today's world,energy shortages and soaring energy prices,demand of energy saving has become a national sustainable development,is also each enterprise in development a gripper to reduce costs.



    Product Parameters



    Thermal oil furnace

    specifications (million kCal/h)

    120 200 300 400 600 800 1000 1200

    Thermal oil furnace exhaust

    gas temperature(℃)

    350 350 350 350 350 350 350 350

    Thermal oil furnace exhaust

    smoke volume(Nm3/h)

    2800 4600 7000 9300 14000 19000 23000 28000

    Waste heat boiler steam

    pressure(MPa)

    0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6

    Waste heat boiler

    gas production rate(t/h)

    0.27 0.44 0.65 0.87 1.34 1.83 2.23 2.73

    Equipped with a

    waste heat boiler

    0.3 0.5 0.8 1 1.5 2.0 2.5 3.0

    Precipitator before the flue gas

    temperature(℃)

    152 150 150 149 145 149 149 147

    The annual output of the

    amount of steam(t)

    1944 3168 4680 6264 9648 13176 16056 19656

    Annual economic benefits

    (million)

    48.6 79.2 117.0 156.6 241.2 329.4 401.4 491.4



    Erection flow chart



    Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators



    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 400,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization



    Organic Heat Carrier Furnace Industrial Boilers And Heat Recovery Steam Generators
