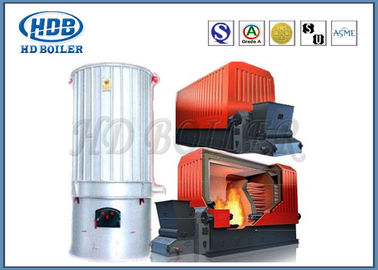

Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification

    • Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification
    • Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification
    • Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification
    • Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification
  • Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification

    পণ্যের বিবরণ:

    Place of Origin: China
    পরিচিতিমুলক নাম: HD Boiler
    সাক্ষ্যদান: ISO9001,ASME,Grade A,SGS,EN
    Model Number: YYL(W)

    প্রদান:

    Minimum Order Quantity: 1Set
    মূল্য: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
    Supply Ability: 500 Sets / Per Year
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Condition: New Structure: Fire/Water Tube
    Fuel Available: Coal Burning Style: Internal Firing Boiler
    Manufacturing Level: A Surface Treatment: Painted
    Operation: Automatic Place Style: Vertical / Horizontal
    HS Code: 3215960855

    Enengy saving YYL(W) Coal Fired Horizontal Organic Heat Carrier Boiler ISO9001 Certification



    Production


    Flame and high temperature smoke produced by complete burning of fuel (light diesel oil,heavy oil,residual oil,natural gas,liquefied petroleum gas,city gas etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.



    Features


    1, Energy-efficient

    2, Safe and reliable

    3, Environmental protection



    Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification

    Parameter



    Model

    YYL(W)

    350

    Y(Q)

    600

    Y(Q)

    900

    Y(Q)

    1200

    Y(Q)

    1500

    Y(Q)

    1800

    Y(Q)

    2300

    Y(Q)

    2900

    Y(Q)

    3500

    Y(Q)

    Rated power(kw) 350 600 900 1200 1500 1800 2300 2900 3500
    Heat supply×104(kCal/h) 30 50 75 100 160 150 200 250 300
    Thermal efficiency(%) ≥88 ≥88 ≥88 ≥88 ≥90 ≥90 ≥90 ≥90 ≥90
    Design pressure(MPa) 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
    Maximum working temperature(℃) 320 320 320 320 320 320 320 320 320
    Medium circulation rate(m3/h) 40 58 100 100 100 160 160 200 200
    The furnace medium capacity(m3) 0.4 0.6 0.6 0.8 1.2 2.1 2.6 3.5 7.8
    Competent diameter(DN) 100 100 125 125 125 150 150 200 200
    Capacity(kw) 14.5 18 31 37.5 49.5 57.5 61.5 75 75
    Applicable fuel Oil,Gas
    Fuel consumption Kg/h(oil) 34 56 84 111 141 163 217 273 326

    Dimensions

    (¢·H)m

    Vertical oil furnace 1.3×2.5 2×3.5 2.1×3.5 2.2×3.5 2.2×4 2.2×4.4 2.7×5.1 2.8×6.5 3.2×6.7
    Horizontal oil furnace 1.2×2.4 1.7×3 1.82×3.5 1.92×4 1.95×4.3 2.4×4.3 2.52×5.3 2.8×6.3 2.92×6

    Circulation

    pump

    Model WRY 80-50-180 100-65-190 100-65-230 100-65-240 100-65-257 125-80-250 125-80-250 125-100-250 125-100-250
    Flow(m3/h) 40 60 100 100 100 160 160 200 200
    Lift(m) 40 38 55 70 80 60 60 60 60
    Power(kw) 7.5 11 22 30 37 45 45 55 55



    Testing




    Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification

    Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification

    Certifications




    Horizontal Organic Heat Carrier Thermal Oil Boiler Coal Fired ISO9001 Certification







    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization



    Company Introduction


    Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
