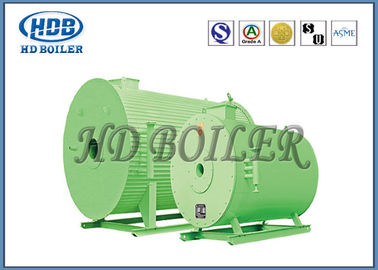

Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System

Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System

    • Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System
    • Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System
    • Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System
    • Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System
  • Fuel Saving Industrial Thermic Fluid Boiler / Waste Wood Hot Oil Boiler System

    পণ্যের বিবরণ:

    Place of Origin: China
    পরিচিতিমুলক নাম: HD BOILER
    সাক্ষ্যদান: ISO9001 , SGS , TUV , ASME , EN
    Model Number: YYL(W)

    প্রদান:

    Minimum Order Quantity: 1 Set
    মূল্য: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Sets Per Year
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Fuel: Gas , Oil Structure: Helical coil
    Burning Style: Internal Combustion Usage: Industrial
    Transport Package: Seaworthy Packing HS Code: 3215960855
    Installed Capacity: 14.5kw ~ 341kw Port: Shanghai

     Industrial Thermal Oil Environmental friendly High Temperature Process Heating



    Description



    A thermal oil boiler fires through a helical coil and generates energy from the hot products of combustion by heating the coil through radiation and convection. The coil heats thermal oil or fluid that is pumped through the thermal oil boiler. The thermal oil heats coils in various types of heat exchangers. Unlike a water or steam boiler, this heating process does not heavily pressurize the system.



    Technical Parameter



    Model

    YYL(W)

    4700

    Y(Q)

    5900

    Y(Q)

    7000

    Y(Q)

    8200

    Y(Q)

    9400

    Y(Q)

    10500

    Y(Q)

    12000

    Y(Q)

    14000

    Y(Q)

    16300

    Y(Q)

    Rated power(kw) 4700 5900 7000 8200 9400 10500 12000 14000 16300
    Heat supply×104(kCal/h) 400 500 600 700 800 900 1000 1200 1400
    Thermal efficiency(%) 90 90 90 90 ≥90 ≥90 ≥90 ≥90 ≥90
    Design pressure(MPa) 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
    Maximum working temperature(℃) 320 320 320 320 320 320 320 320 320
    Medium circulation rate(m3/h) 260 300 340 400 520 600 600 680 800
    The furnace medium capacity(m3) 8.4 8.8 10.5 11.2 11.5 13 15 18 23
    Competent diameter(DN) 200 250 250 250 300 300 300 350 350
    Capacity(kw) 98.5 121.5 148.5 155 195 235 235 295 341
    Applicable fuel Oil,Gas
    Fuel consumption Kg/h(oil) 435 545 660 760 875 980 1140 1360 1600

    Dimensions

    (¢·H)m

    Vertical oil furnace 3.2×7 3.3×7.5 3.5×8.2 3.62×9.2 3.7×9.6 3.65×11 3.65×11

    3.98×

    11.8

    4.06×

    12.8

    Horizontal oil furnace 3.23×6.7

    3.26×7.45

    3.26×7.9 3.62×9 3.6×9.48

    3.65×

    10.4

    3.65×

    10.4

    3.98×

    11.5

    4.06×

    12.5

    Circulation

    pump

    Model WRY 125-100-257

    125-

    100-260

    150-125-270 125-100-250 125-100-257 125-100-260 150-100-260 150-125-270A 150-125-280
    Flow(m3/h) 260 300 340 200×2 260×2 300×2 300×2 340×2 400×2
    Lift(m) 70 70 76 60 70 70 70 76 78
    Power(kw) 75 90 110 55×2 75×2 90×2 90×2 110×2 132×2



    Features



    1. Energy-efficient

    2. Safe and reliable

    3. Easy to install

    4. Fuel applicable

    5. Application industry



    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization
