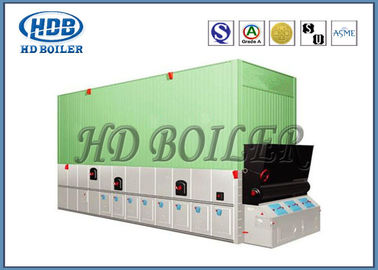

Fire Tube Chain Grate Thermal Oil Boiler With Coal Fired / Biomass Fired

Fire Tube Chain Grate Thermal Oil Boiler With Coal Fired / Biomass Fired

    • Fire Tube Chain Grate Thermal Oil Boiler With Coal Fired / Biomass Fired
    • Fire Tube Chain Grate Thermal Oil Boiler With Coal Fired / Biomass Fired
    • Fire Tube Chain Grate Thermal Oil Boiler With Coal Fired / Biomass Fired
  • Fire Tube Chain Grate Thermal Oil Boiler With Coal Fired / Biomass Fired

    পণ্যের বিবরণ:

    Place of Origin: CHINA
    পরিচিতিমুলক নাম: HD BOILER
    সাক্ষ্যদান: ISO9001 , SGS , TUV , ASME , EN
    Model Number: YLW

    প্রদান:

    Minimum Order Quantity: 1 Set
    মূল্য: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Sets Per Year
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Structure: Fire Tube Burning Style: Chamber Combustion Boiler
    Trademark: HB BOILER Specification: 100*104kcal/h-2000*104kcal/h
    HS Code: 3215960855 Installation: Assembled Boiler
    Medium: Organic Heat Transfer Material Drum Placement: Horizontal Boiler
    Manufacturing Level: A Transport Package: Seaworthy Packing

    Chain Grate Thermal Oil Boiler with Coal Fired / Biomass Fired Environmental Energy



    Description



    YLW organic heat-medium boiler is the packaged forced circulation chain grate boiler. Front section of boiler body is the hearth radiation heating area consisting of closely-aligned double-square coils. The rear section is the convection flush heating area of coil tube bank. Boiler is structured into the body drum on the combustion hot fume chamber. Heat from the boiler is used to heat the air as required for the boiler combustion in the air preheater. Then fume exhausts outside with chimney via the dust collector and draught fan.



    Product parameters



    Model YLW-1900MA YLW-2300MA YLW-2900MA YLW-3500MA YLW-4100MA YLW-4700MA YLW-5900MA YLW-7000MA
    Delivered heat×104(kCal/h) 160 200 250 300 350 400 500 600
    System heating efficiency(%) 78 78 79 79 79 80 80 80
    Design pressure 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
    Max.working temperature(℃) 320 320 320 320 320 320 320 320
    Medium circulation(m3/h) 160 160 200 200 200 200 250 250
    Diameter of main pipe(DN) 150 150 200 200 200 200 250 250
    Installation capacity(KW) 75 77 100 100 120 140 175 175
    Applicable fuel Soft coal, class II and III anthracite
    Model YLW-8200MA YLW-9400MA YLW-12000MA YLW-14000MA YLW-16500MA YLW-17500MA YLW-19000MA YLW-23500MA
    Delivered heat×104(kCal/h) 700 800 1000 1200 1400 1500 1600 2000
    System heating efficiency(%) 80 80 81 81 81 81 81 81
    Design pressure 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
    Max.working temperature(℃) 320 320 320 320 320 320 320 320
    Medium circulation(m3/h) 400 520 600 680 800 1000 1000 1000
    Diameter of main pipe(DN) 250 300 300 350 350 400 400 400
    Installation capacity(KW) 215 270 315 380 460 540 600 620
    Applicable fuel Soft coal, class II and III anthracite



    Verification



    Fire Tube Chain Grate Thermal Oil Boiler With Coal Fired / Biomass Fired



    Company Introduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.



    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization
